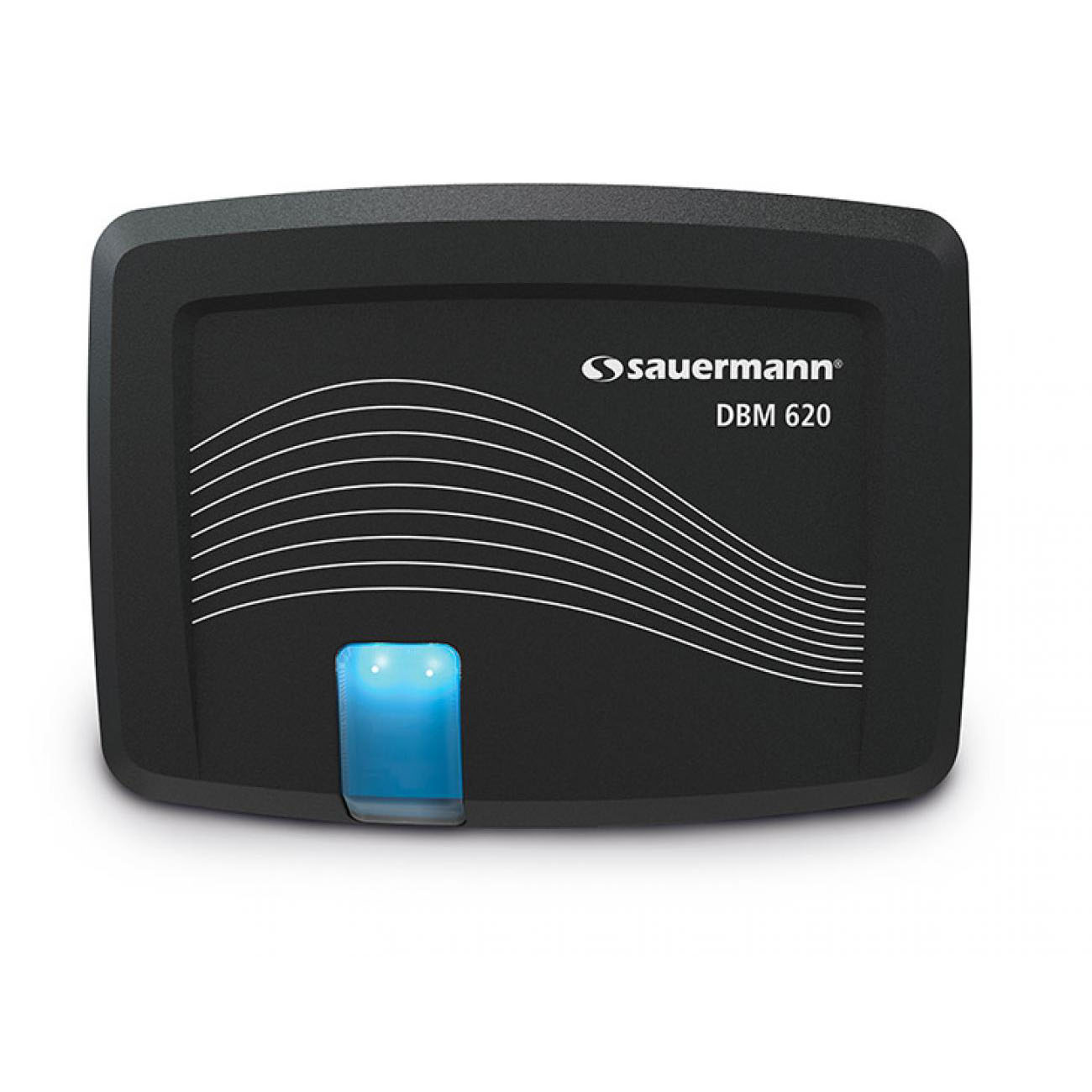

The newly redesigned Kimo DBM 620 Air Flow Meter is a multipurpose electronic air balancing instrument primarily used for efficiently taking direct air volume readings from air vents.
Inquire nowAir Changes per Hour (ACPH) metric is the first of its kind to be included in a Balometer
SmartKap App allows for easy reading and export of data
Lighter and smaller than previous models
Easily swap between 5 different hood configurations
Also functions as autonomous micromanometer with Pitot tube attachment
Extendable tripod eliminates the need for ladders in most environments
| MEASURE DETAILS | |
| Units | °C, % RH, Pa, m/s, hPa, m³/h |
| Measuring Ranges | |
| Portata (parametro calcolato) | 35.00 m³/h ... 4250.00 m³/h |
| Velocità (parametro calcolato) | 0.20 m/s ... 10.00 m/s |
| Temperatura (NTC) | -20.00 °C ... 70.00 °C |
| Umidità relativa (sensore capacitivo | 0.00 % RH ... 100.00 % RH |
| Pressione atmosferica | 700.00 hPa ... 1100.00 hPa |
| Pression | -2500.00 Pa ... 2500.00 Pa |
| TECHNICAL DETAILS | |
| Parameters | Air velocity Airflow Humidity Temperature |
| Displays |
No |
| IP Protection | IP 40 |
| Battery life | 30 hours |
| Power Supply | 4 alkaline batteries LR6 AA 1.5V |
| Protective cover | No |
| Interchangeable module | No |
| INSTRUMENT DIMENSIONS | |
| Length | 475 mm |
| Width | 455 mm |
| Height | 255 mm |
| Weight | 2900 g |
| OPERATING TEMPERATURE | |
| Min | 0.00 °C °c |
| Max | 50.00 °C °c |
| STORAGE TEMPERATURE | |
| Min | -20.00 °C °c |
| Max | 60.00 °C °c |
